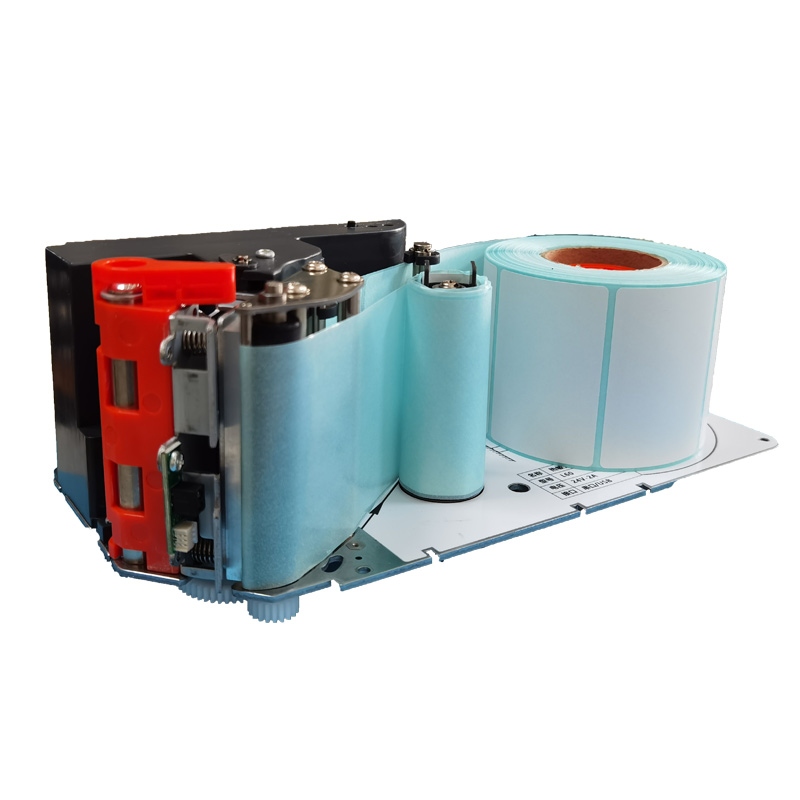

L60CE Thermal Label Printer
KAIBO ICOD brand.
Label thermal printer.
Sticker thermal printer.
Without shell.
Description
L60CE Thermal Label Printer.
WIthout shell.
| Model | L60CE Thermal Label Printer |
| Printing Method | Thermal |
| Resolution | 203 DPI (8 dots/mm) |
| Print Width | 56mm |
| Print Length | 25mm-60mm |
| Print Speed | 150mm/s (Max) |
| Print Font | Chinese: GB18030 24*24 dots |
| English: ASCII 12*24 dots | |
| Sensor | Paper Out Detection, Paper Outlet Detection, Sewn Label Detection, Cover Open Detection |
| Paper Type | Continuous Paper, Label Paper |
| Paper Roll Width | 30mm-60mm |
| Paper Thickness | 0.058-0.20mm |
| Maximum outer diameter of paper roll | 95mm |
| inner diameter of paper shaft | 12mm/25mm/40mm |
| Communication Interface | USB, RS232C COM |
| Power Output | DC12V/24V, 2A |
| Buttons | FEED button |
| Indicator Lights | Power indicator, error indicator |
| Audio Prompts | Buzzer (reserved) |
| Instruction Set | TSC/ESC |
| Supported Platforms | Windows, Linux, Android |
| 1D | UPC-A/UPC-E/EAN13(JAN13)/EAN8(JAN8)/ |
| CODABAR/ITF/CODE39/CODE93/CODE128 | |
| 2D | QR Code, PDF417 |
| Working Dimensions | 0～50°C, 20％～85％ (non-condensing) |
| Storage | -20～70°C, 5％～95％ (non-condensing) |
| Dimensions (L*W*H) | 246.6*113.8*104.5mm |
| Weight | Approx. 1400g |
