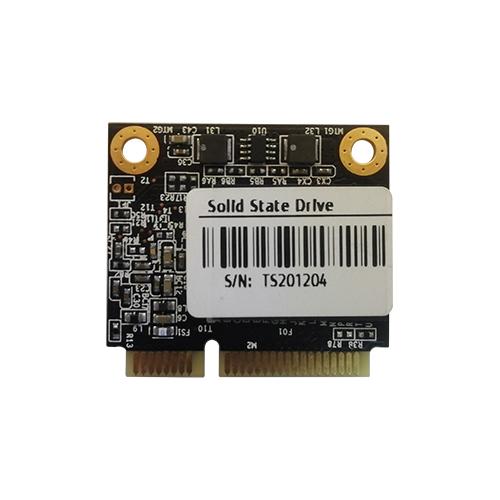

Industrial mini mSATA SSD

Mini mSATA SSD Capacity: 4GB 8GB 16GB 32GB 64GB 128GB 256GB.
Half size mSATA SSD | Half height mSATA SSD | Half length mSATA SSD.
30 mm mSATA SSD solid state drive (MO300B) | mini PCI-e SSD.
Industrial level.
Support Global wear-leveling.
High performance with small form factor.
Low power consumption.
Support AHCI, TRIM, AES, NCQ, S.M.A.R.T.

Description

Description

KAIBO Half size mSATA SSD | Half height mSATA SSD | Half length mSATA SSD | 30 mm mSATA SSD solid state drive (MO300B) | mini mSATA SSD support working temperature : -40℃ ~ +85℃

NAND FLASH: SLC and MLC.

We are factory,Hope OEM and ODM order.

Please send email to get more details: info@kaibotek.com

Specification:
Model	KB-MSATA30-XXM /S
Form Factor	mSATA mini (MO300B)
Interface	SATAIII 6.0Gb/s, Compatible with SATAII 3.0Gb/s, SATAI 1.5Gb/s (mini-PCIe 52pin)
Flash Type	MLC, SLC
Capacity	4GB,8GB,16GB,32GB,
	64GB,128GB,256GB
Performance	Sequential read	up to 540MB/s
	Sequential write	up to 300MB/s
Power	Input voltage	3.3V (+/_5%)
	Working	3.0W
	Idle power	0.25W
Reliability and stability	Endurance	Block: SLC 100k, MLC 10k program/erase cycles
	MTBF	≥ 2,000,000 hours
	ECC	66 error correcting code every 1,024 Byte
TRIM Command	Supported
Environmental	Operating temperature	-20℃ to +75℃
		-40℃ to +85℃
	Storage temperature	-55℃ to +95℃
		,
	Humidity	5% to 95%
	Vibration	sine 16.8G, 10~ 2,000Hz (operating)
	Shock	Half-sine wave, 50G/11ms
Dimension(LxWxH)	29.8 x 26.8 x 3.4mm
Others	Weight: ≤3.5g
